Characteristics

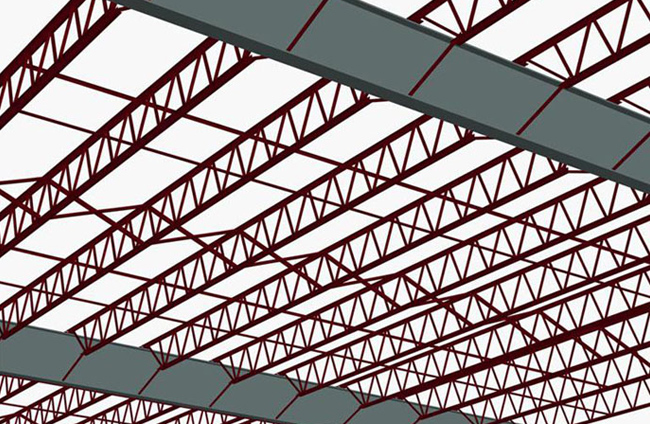

The R-K series steel truss is designed and manufactured to replace cold formed thin-walled C, Z purlin or high-frequency welded H steel roof purlin in the long span span of metal buildings.
Type

The double angle steel is used as the chord, and round steel, round pipe or angle steel are used as abdominal members.
Superiority

In the metal construction, the long span open roof purlin system will save the amount of steel for the whole project, and ultimately save the cost of the project.
Application

Roof structure, such as 12~18 meter span roof purlin.

Characteristics

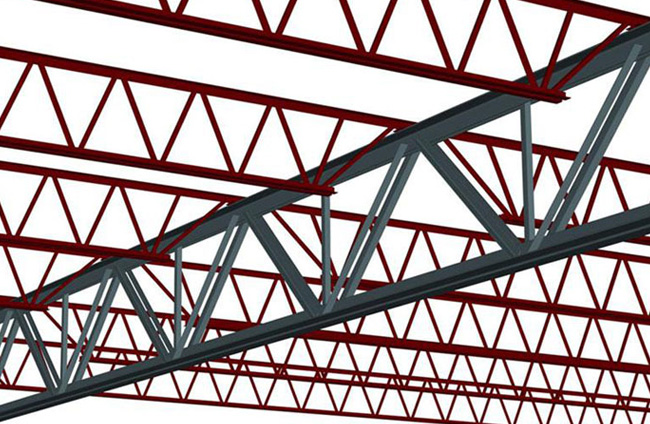

The DH series steel truss is designed and manufactured for replacing the solid H steel girders with roof or floor girders in steel structure buildings.
Type

H steel, square steel tube or rectangular steel tube are used as chords, and square steel tubes or rectangular steel tubes are used as abdominal members.
Superiority

In steel structure buildings, steel truss beams are used for roofing or floor construction instead of real H steel girders.
Application

A girder structure, such as a 12~36 metre span roof or floor girders.

Characteristics

The F-LH series steel truss is designed and manufactured for replacing the solid belly H steel trusses in the floor system of steel structure buildings.
Type

The double angle steel is used as the chord, and round steel, round pipe or angle steel are used as abdominal members.
Superiority

In the steel structure building, the steel truss trabeculae not only save the amount of steel for the whole floor, but also because a large number of pipes can pass through the steel trusses, and the height of the floor can be saved.
Application

Floor structure, such as 9~18 meter span floor trabecula.

Characteristics

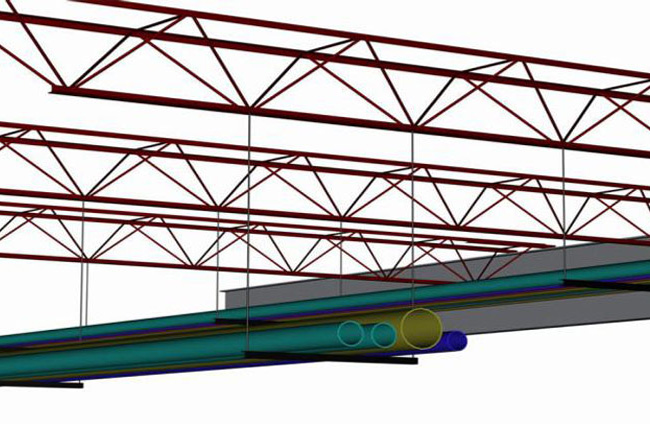

The S series space steel truss is designed and manufactured for replacing H type steel as suspension structure in all mechanical and electrical equipment installation of buildings.
Type

The double angle steel is used as the chord, and round steel, round pipe or angle steel are used as abdominal members.
Superiority

In the installation of mechanical and electrical equipment for all buildings, the use of space steel truss instead of H steel as a suspension structure not only facilitates installation, but also greatly saves the amount of steel used.
Application

Suspension structure, such as 9~18 meter span suspension trabeculae.
